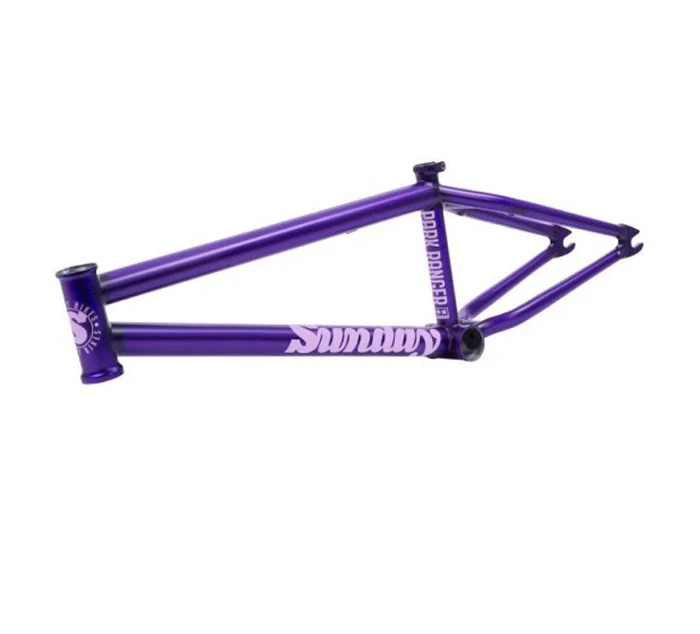

CUADRO BMX SUNDAY PARKRANGER PURPLE
Cuadro de bmx pensado para desturir los parks y a trucos, El cuadro de BMX SUNDAY PARK RANGER fabricado en cromoly 4130 de alta calidad con tuberia de espesores diferentes para dar mas fuerza al conjunto, con este cuadro de bmx sunday gracias a su geometria con un tubo superior muy bajo y unas vainas muy cortas le hacen el cuadro bmx perfecto para tirar trucos de aerea o en street al ser tan manejable podras hacer con facilidad trucos de barandillas
00% 4130 Chromoly Frame
Park and transition inspired geometry.
Nightshift style, double-butted, top and down tubes with proven internal gusseting.
Integrated seat clamp
Butted Seat Tube & Miter Cut Top Tube:
A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
Tapered Chain & Seat Stays:
Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
Hollow Dropouts with Chain Tensioners:
Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
Removable Brake Hardware:
Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they’re not.
Geometry
Top Tube Lengths: 20.5″, 20.75″, or 21″
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 12.70-13”
Bottom Bracket Height: 11.625”
Standover: 7.625”
Tire Clearance: 2.4”
Head Tube Length: 4.8”
Weight: 5lbs
